Circuit Artist
A circuit simulator where you draw everything. Wires are pixels, gates are triangles. Design chips, watch signals glow as they propagate, and debug by rewinding time.
このゲームについて
"The noblest pleasure is the joy of understanding"
Leonardo da Vinci
Every Circuit Is An Image
Draw circuits like a pixel artist - brush, select, copy-paste - and simulate with 1 button.
Everything is built from a single primitive: the NAND gate. Watch logic propagate in real time.
Game Rules
Little pixel triangles are NANDs.
Black pixels are background.
Everything else is a wire.

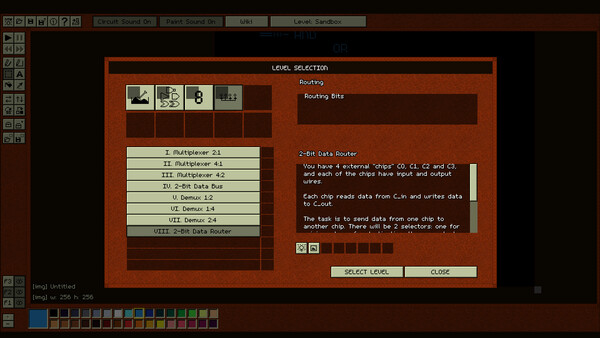

Solve the Campaign
60+ levels and growing, ranging from basic gates to memory and arithmetic (in the future cpu's, coding and more!)
Hardware-Like Experience
Instead of schematics, create complex circuits designing component blueprints, placing + routing them.
Active Development
Actively developed and fully open source.
New to Circuit Artist?
Check the guides on Community Hub
